Air Curtains

  • Commercial Air Curtains

Commercial Air Curtain is used at commercial building entrance doors like, malls, banks, hotels, hospitals, restaurants, supermarkets, stores and public office buildings.

Commercial Air Curtains Standard Specifications

Commercial Air Curtains are commonly used at public places to maintain the inside temperature as well as the environment. These are vertical intake centrifugal type Air Curtains having variable air speed incorporated with following accessories;

  • Magnetic Sensor

    Installed to make the operation of Air Curtains automatic with opening/ closing of door.

  • Remote Control

    For easy and distant operation of Air Curtains. The air speed can also be controlled by remote.
Commercial-Air-Curtains-specifications
Model Specification(mm) Height Efficiency (m) Air Speed(m/s) Power Supply Power(W) Air Volume(m3/h) Noise(dB) Unit Size(L*W*D)(mm) Weight(kg)
FM3510 1000 3.5 10.0 – 15.0 220V, 1Ph, 60Hz 186 - 322 1020 53 1000*230*212 15.1
FM4510 1000 4.0 15.0 – 20.0 220V, 1Ph, 60Hz 342 – 417 1425 64 1000*230*212 15.1
FM4515 1500 4.5 639 – 731 2375 68 1500*230*212 23.6

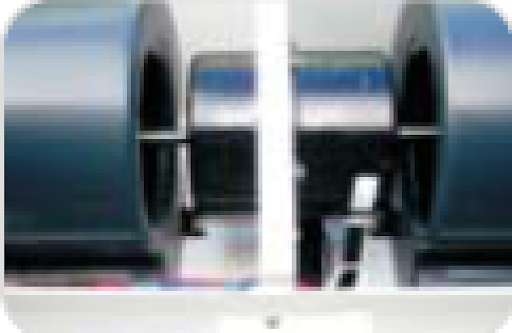

Aluminum-Motor

Aluminum-Motor

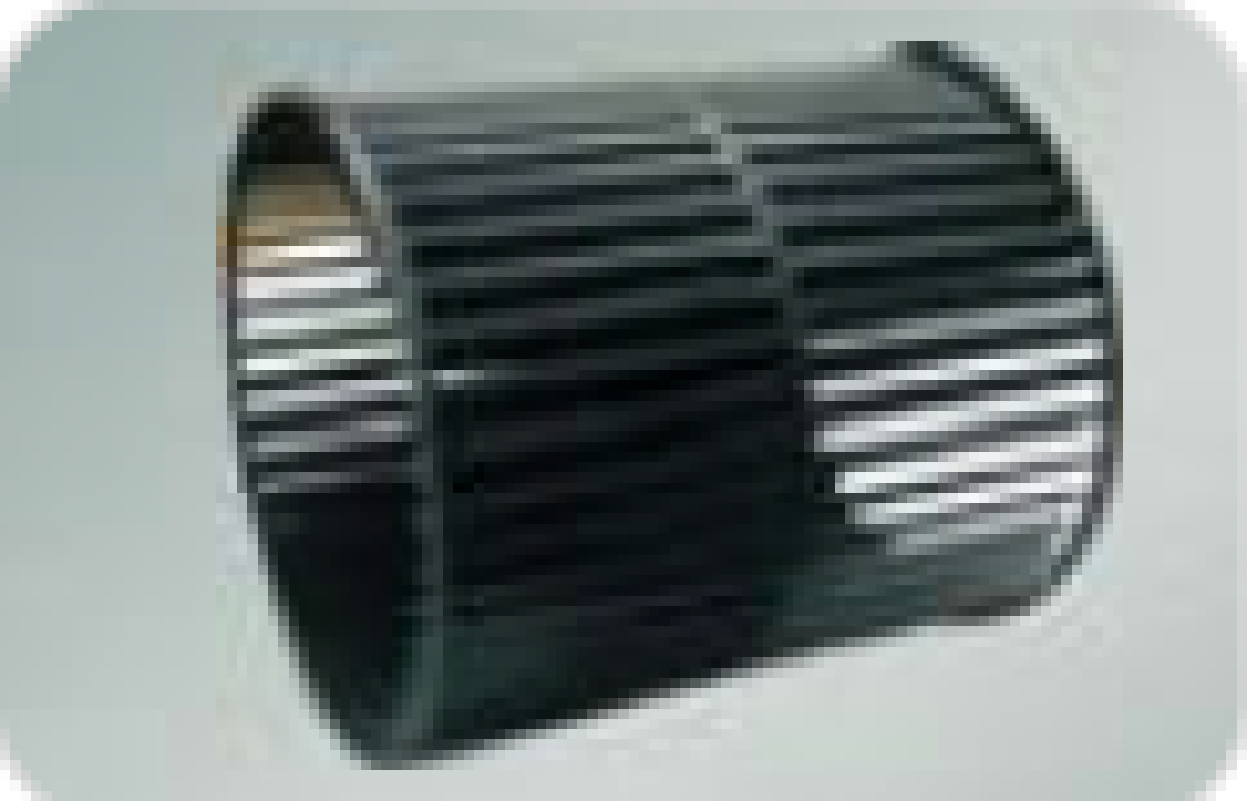

Plastic-Air-Wheel

Plastic Air Wheel

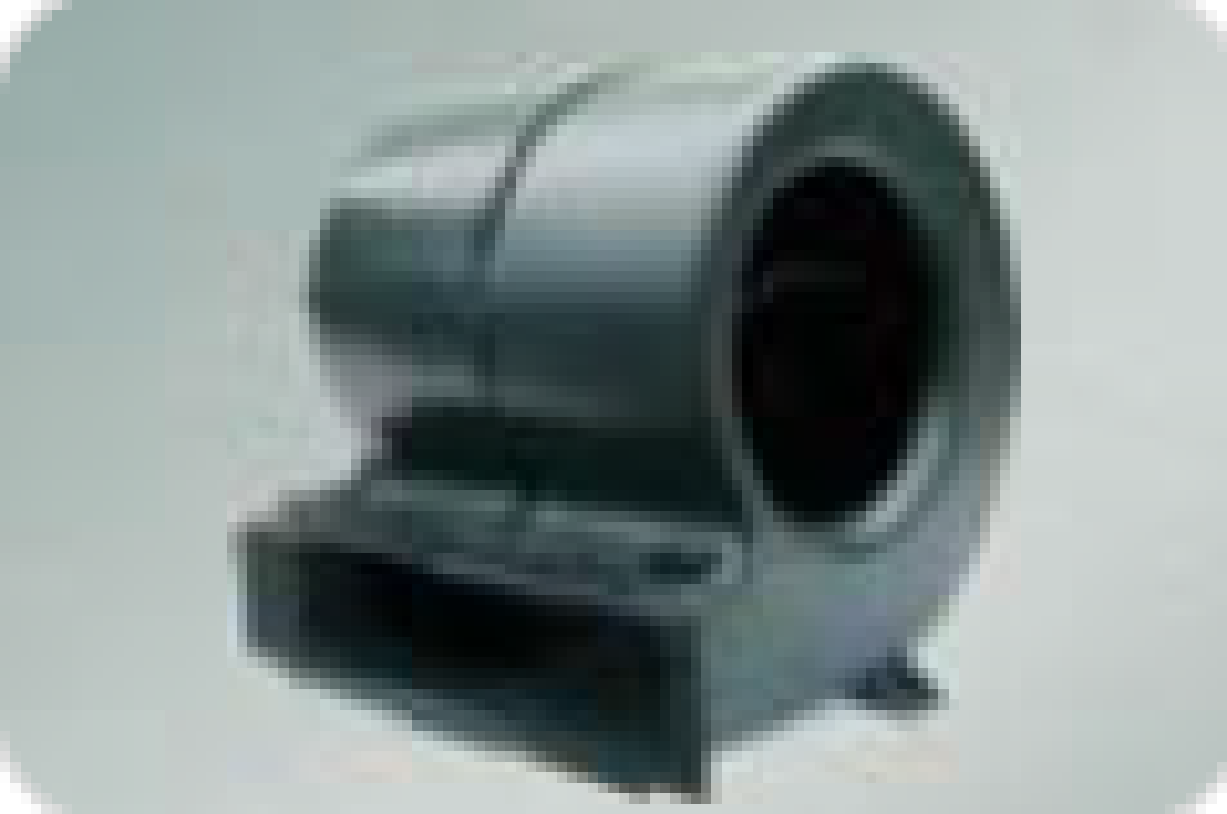

Plastic-Shell

Plastic Shell

Commercial Air Curtains

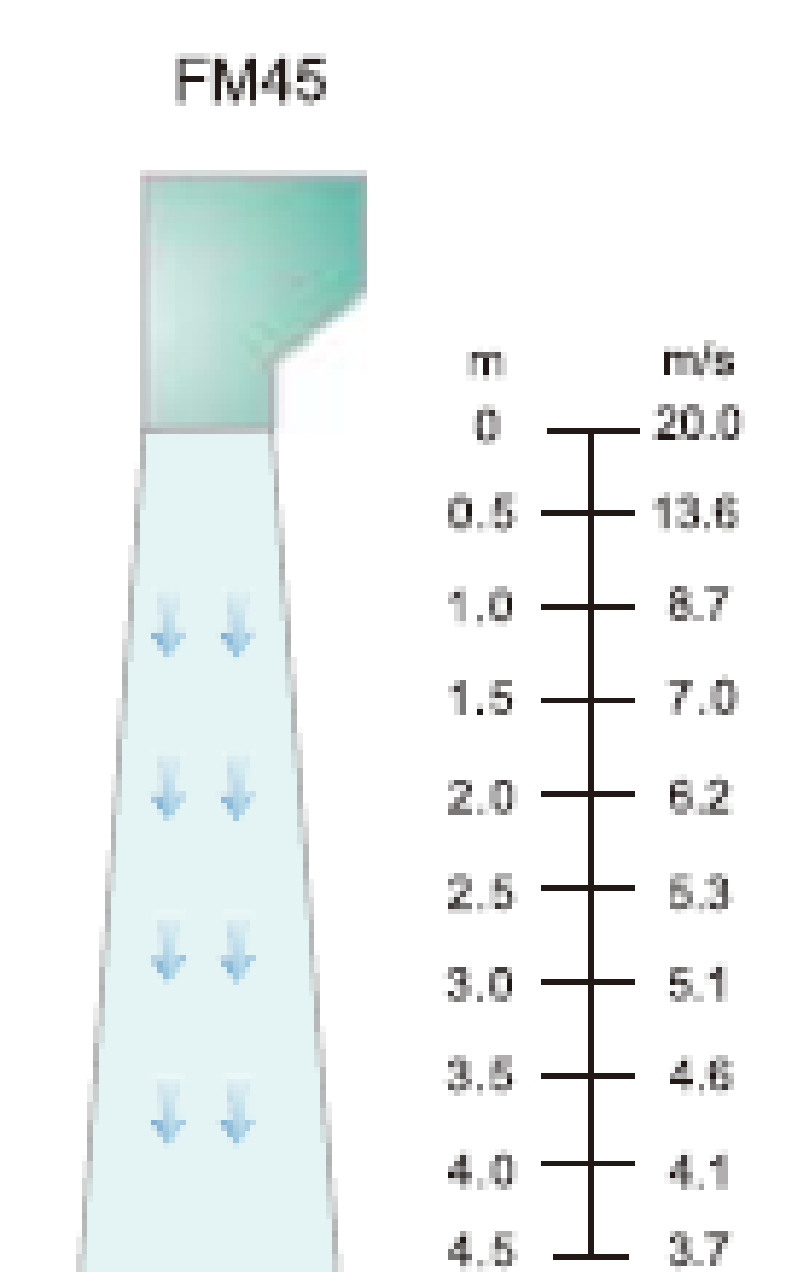

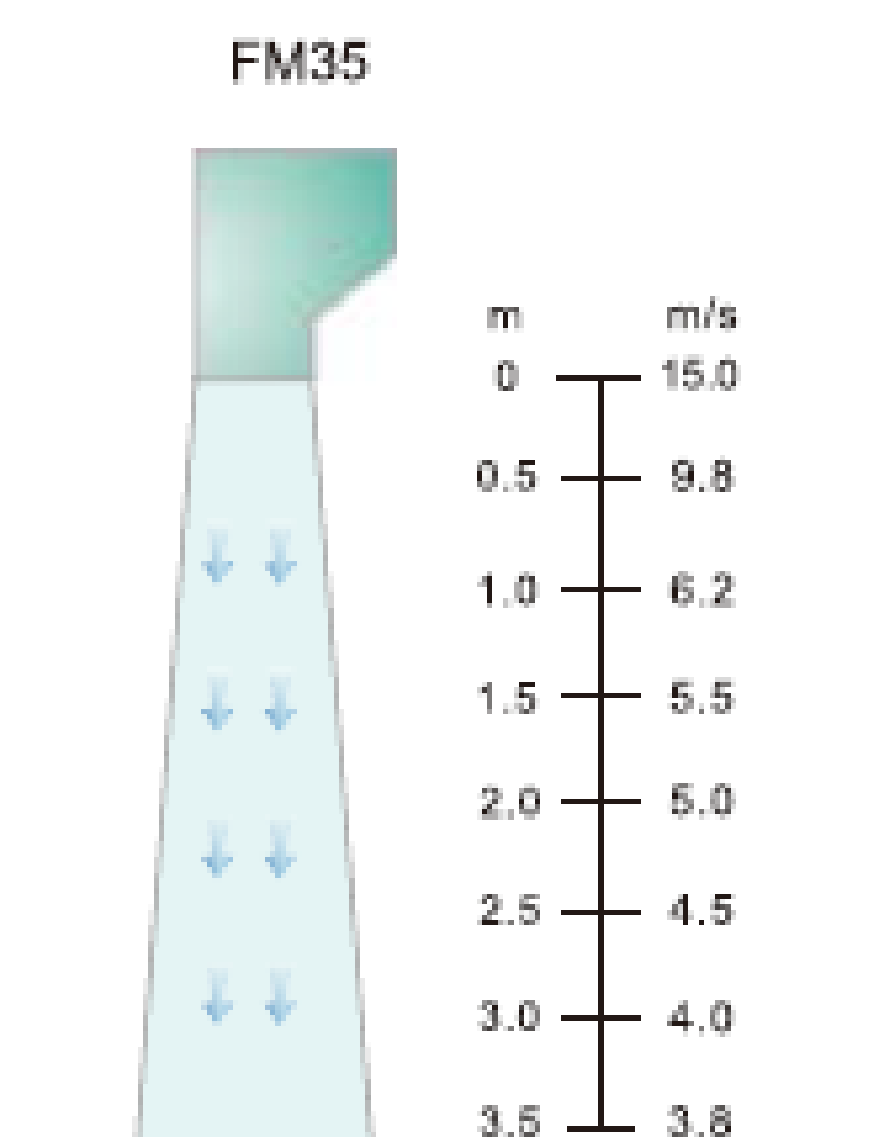

Commercial Air Curtains Frequency
Commercial Air Curtains Frequency

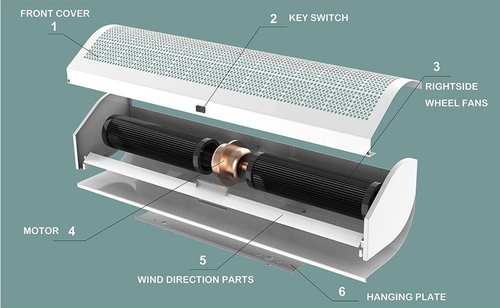

Commercial-Air-Curtains-specs

  • Industrial Air Curtains

Industrial Air Curtain is specifically designed for heavy duty and intensive industrial purposes, used in factories and warehouses. This type of Air Curtain is installed with industrial sectional doors or roller shutter doors at loading areas, docking stations, production and processing plants inside factories.

Industrial & Commercial Air Curtains Standard Characteristics

As per their heavy performance and intensive usage, these are very high power and high air speed curtains. To make their operation secure and long lasting, these are installed with following accessories;

  • Limit Switch

    Incorporated with air curtains to make it operation automatic each time a door is operating.

  • Circuit Breaker

    Installed to avoid any accidents, short circuits etc. due to high operating power and voltage.

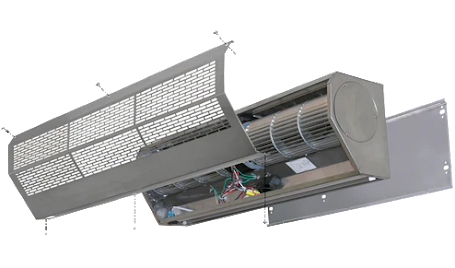

Industrial-Air-Curtains
Industrial Air Curtains
Industrial Air Curtains

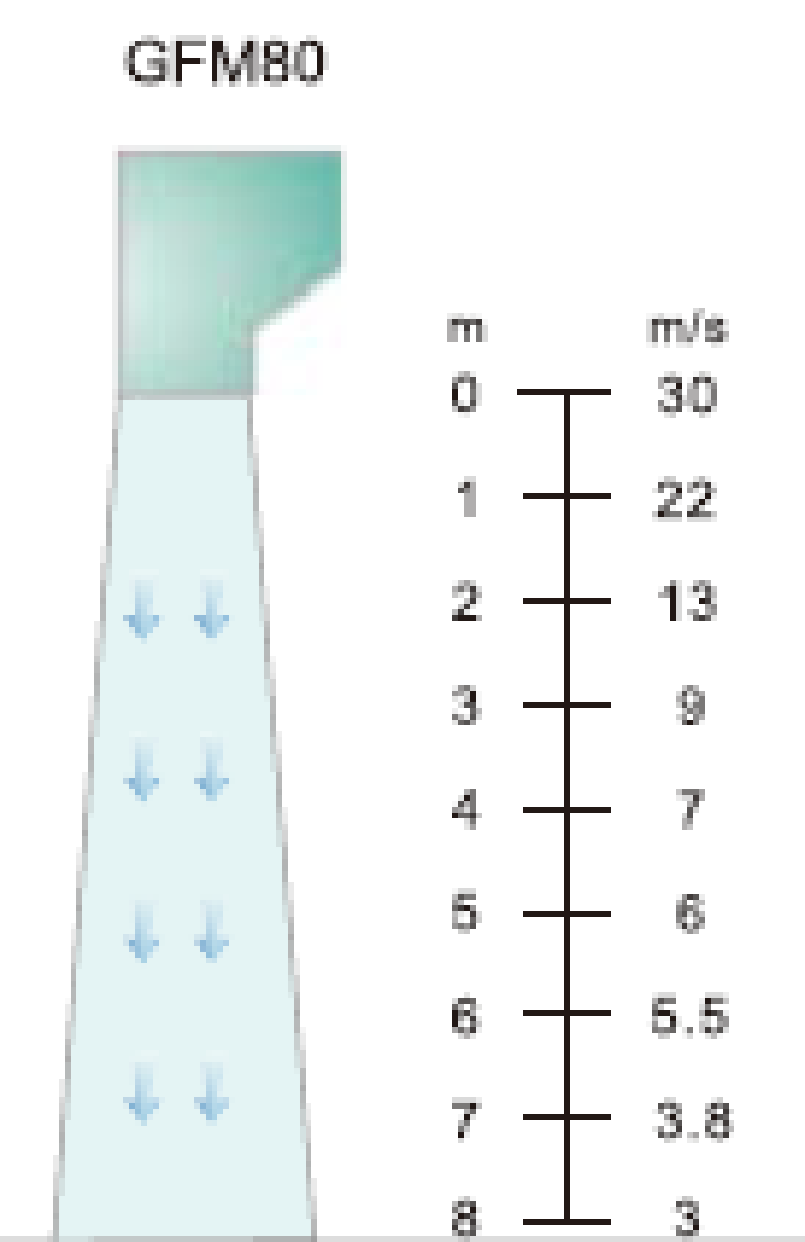

Model Specification(mm) Height Efficiency (m) Air Speed(m/s) Power Supply Power(W) Air Volume(m3/h) Noise(dB) Unit Size(L*W*D)(mm) Weight(kg)
GFM8012 1200 8.0 10.0 – 15.0 380V, 3Ph, 60Hz 1500 3974 70 1200*287*297 35.6

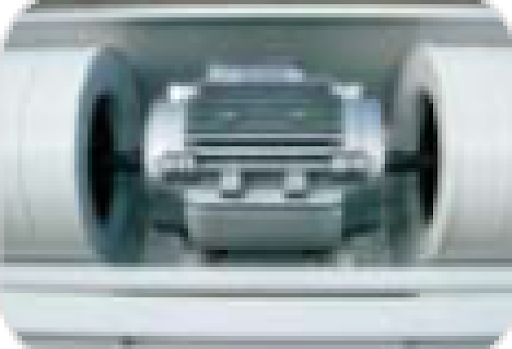

Aluminum-Motor

Motor

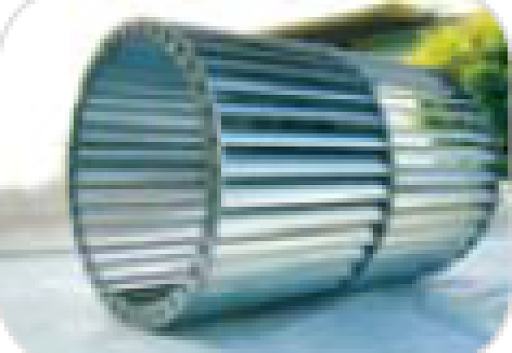

Metal-Air-Wheel

Metal Air Wheel

Metal-Shell

Metal Shell

High-Efficiency-Air-Wheel

High Efficiency Air Wheel

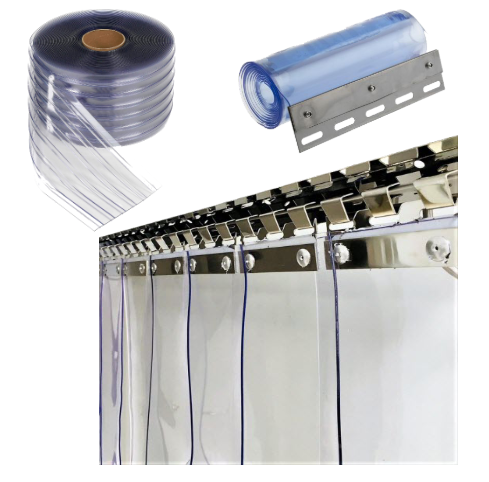

  • PVC Strip Curtains

PVC Strip curtain is the most economical system for separating any kind of location such as high humidity or low temperature zones. Its easy installation, simple handling and low maintenance make it suitable in every space and widely accepted.

PVC Strip Curtains Standard Characteristics

As per their heavy performance and intensive usage, these are very high power and high air speed curtains. To make their operation secure and long lasting, these are installed with following accessories;

  • Transparent, high quality PVC strip curtains

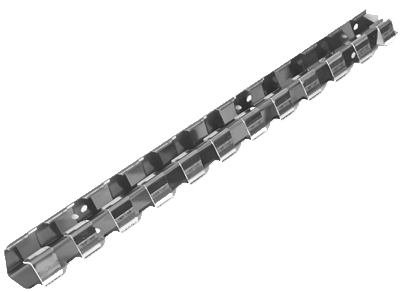

  • Stainless steel/ galvanized hangers
  • Stainless Steel/ galvanized clips
PVC Roll(m) Width(mm) Thickness(mm) Temperature(°C)
50 200 2 Ambient
50 400 4 Ambient
50 200 2 Freezer (upto -30°C)
PVC-Strip-Curtains PVC-Strip-Curtains
