Sliding & Swing Gate Operators

The industrial gate operators/ motors are installed with those industrial sliding and swing gates that sees passage of trailer, trucks, semi-trailers and forklifts. An intensive use of sliding and swing gates, which can’t be opened-closed manually, has been only due to these automatic operators and can be handled without any physical effort.

sliding-gate Ideal Solution for Industrial Entrance and Exit Gates

In factories and industries, the giant entrance/ exit gates are in frequent use on daily basis and are not easily moveable aimed their size and weight. Thanks to the automation systems that made it possible to operate these gates just with a push of button or remote, hence a best and easy solution for sliding and swing gates.

Sliding & Swing Gate Operators

sliding-gate Standard Characteristics

The range of industrial gate operators varies depending upon dimensions of sliding or swing gates. A complete system kit comprising of following components are installed for safe operation of industrial gates;

  • Motor & Control board

    for basic operation of motor with open-stop-close push/ switch button
  • Remote control

    for easy and distant operation, can be operated from security rooms.
  • Limit magnet

    to adjust the opening- closing position of gate according to requirement
  • Side Safety Edges/ Infrared beam Photocells

    are installed, one at each end of the gate, in order to give a safe and clear way while a vehicle is passing through passage zone. It prevents the gate from closing if it detects any obstacle or if a passing vehicle stops in this zone, guaranteeing top level protection.
  • Flash light

    for added safety is placed along with the moving gate to indicate the movement of any object.

sliding-gate Customized Operating Mechanism

  • Proximity card/ RFID card reader

    Additional security can be placed by installing a card reader set which first detects authorized personal at the entrance and then allows the motor to operate.
  • Induction loop system

    magnetic field loop detector for metallic objects and vehicles which makes the motor to operate automatically whenever a metal object passes over it.

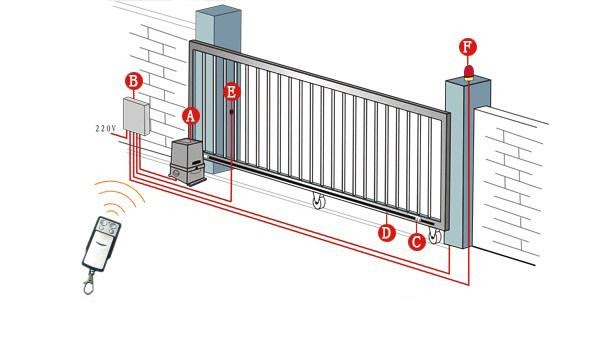

Customized-Operating-Mechanism
A: Motor B: Power Supply Box C: Limit Magnet
D: Gear Track E: Photocell F: Flash Light
swing-gate-operators

sliding-gate Range of Sliding Gate Operators

A range of sliding gate operators are available ranging from 300kg light commercial gates to 3.5Ton heavy industrial gates, with leaf lengths varying from 4m to 20m.

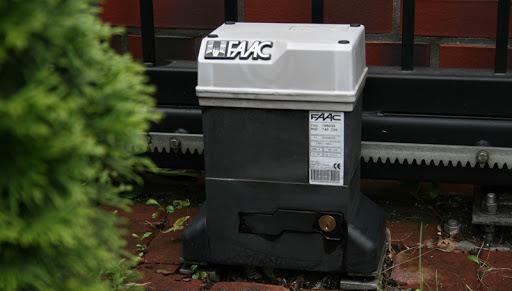

  • FAAC 746 ER 230V

    • Duty: Light Commercial/ Industrial
    • Power Supply: 230V, 1Ph
    • Power Consumption: 300W
    • Max Gate Weight: 600kg
    • Max Speed: 9.6m/ min
    • Designed for height and side adjustable fastening. As the gearmotor is non reversing, no electric locks need to be installed.
  • FAAC 844 ER 230V

    • Duty: Light Commercial/ Industrial
    • Power Supply: 230V, 1Ph
    • Power Consumption: 650W
    • Max Gate Weight: 1,800kg/ 1.8 Ton
    • Max Speed: 9.6m/ min
    • In case of power failure, the key operated release device makes it possible to open and close the gate manually. As the gearmotor is non reversing, no electric locks need to be installed.
  • FACC 844 3 Phase

    • Duty: Industrial
    • Power Supply: 230V, 3Ph
    • Power Consumption: 950W
    • Max Gate Weight: 2,200kg/ 2.2 Ton
    • Max Speed: 7.2m/ min
    • Control board requires CAT3 safety edges to be used.
    • Twin disk clutch in oil bath (anti crushing safety). As the gearmotor is non reversing, no electric locks need to be installed.

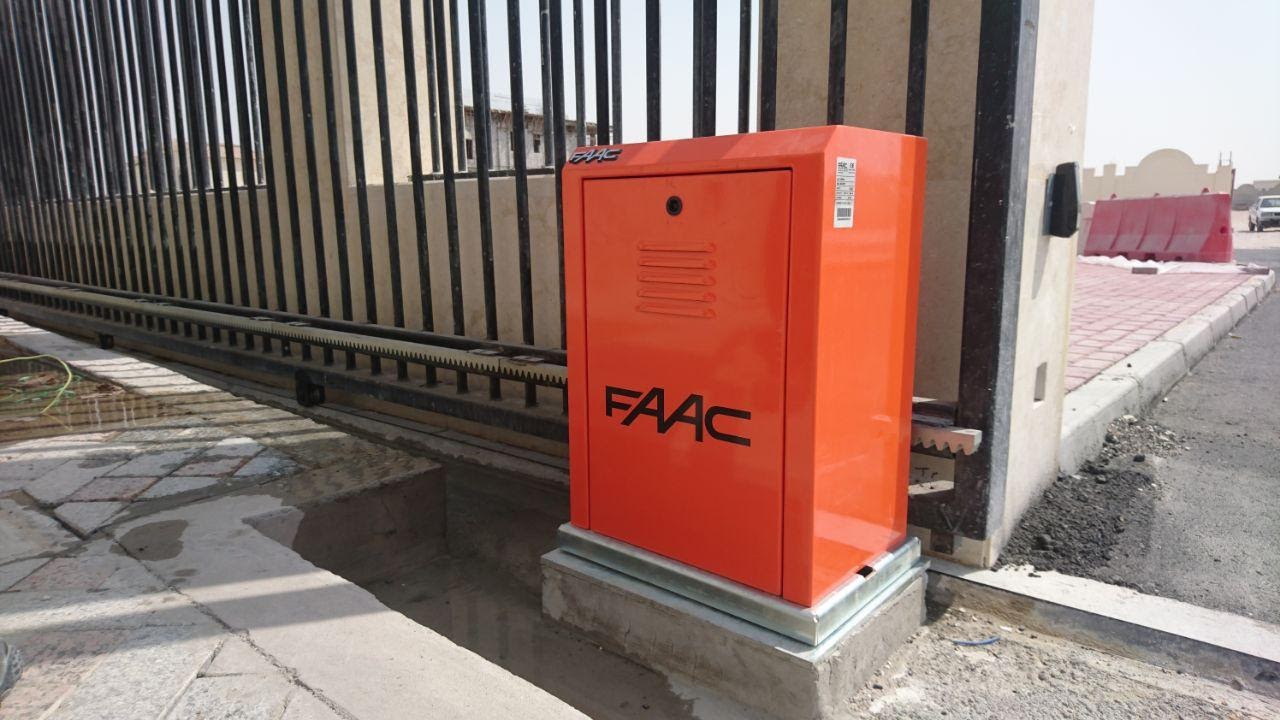

  • FAAC 844 380V, 3 Phase

    • Duty: Industrial
    • Power Supply: 380V, 3Ph
    • Power Consumption: 850W
    • Max Gate Weight: 3,500kg/ 3.5 Ton
    • Max Speed: 10m/ min
    • Control board requires CAT3 safety edges to be used and mode 6 racking.
    • Ideal for large industrial gates with intensive use. Self breaking motor guarantees reduced stop spaces and keeps the system mechanically locked when the motor is not in operation.
FACC 844 3 Phase
FAAC 844 380V, 3 Phase
